Charger Direct Pressure
click on image for larger view

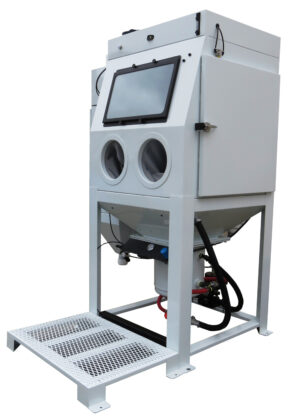

Charger Direct Pressure
High Daily Machine Duty Cycle using “pressure pot” abrasive delivery means greater abrasive frictional heat and reduced part cleaning time. The Charger also includes the space saving side mounted dust collector.
- Product Info
Need help finding the right machine? CONTACT our sales department.
-
Have a Question? Ask a Specialist
-
- 13” x 24” Safety View Window
- ClearView™ Window Sweep
- Low Static Window Protector
- Advanced LED Cabinet Lighting
- Steel Front Hopper Wear Plate, Replaceable
- Down-Draft Air Inlet Filters
- 10” Diameter Work Ports
- Full Front Operator Treadle Pedal
- Right Side Access Door
- Safety Door Interlock
- Operator Control Panel
- Side Mounted Dust Collector Standard
- Filter Cycle Cleaning Gauge
- Operator Platform
- HD Bar Work Grates
- Boron Carbide Nozzle
- Blow-Off Gun
- 220 Sq.Ft. Cartridge Dust Collector
- Easy Clean Pneumatic Vibrator Cleaning Cycle
- MERV Test Cartridge Filter
- Dust Collector Service Access Door
- Hopper Dust Storage
- 700 CFM Blower with Silencer
- 1.0 Cubic Foot ASME Coded Pressure Pot
- Pressure Pot Service Port
- HD Abrasive Flow Control Valve
- 1/2″ ID Inside Flexible Ergo Whip Hose
3636
Inside Cabinet
36”x36”x36”
Overall Cabinet
54”Wx42”Dx90”H
Door
30” x 28”H
Air Usage
25 to 90 CFM
Electrical
120 Volt-60Hz
Dust Collector
220 Sq.Ft. Cartridge
Shipping Weight
925 Lbs.
4836
Inside Cabinet
48”Wx36”Dx36”H
Overall Cabinet
66”Wx42”Dx90”H
Door
30”x 28”H
Air Usage
25 to 90 CFM
Electrical
120 Volt-60Hz
Dust Collector
220 Sq.Ft. Cartridge
Shipping Weight
1200 Lbs.
4848
Inside Cabinet
48”x48”x36”H
Overall Cabinet
66”Wx54”Dx90”H
Door
39”x28”H
Air Usage
25 to 90 CFM
Electrical
120 Volt-60Hz
Dust Collector
220 Sq.Ft. Cartridge
Shipping Weight
1500 Lbs.
