3030 Savage Direct Pressure

3030-Savage-13030-Savage-1

click on image for larger view

3030 Savage Direct Pressure

The 3030 Savage comes equipped with a very large 700 cfm exhaust blower and separator reclaimer.  Included is the negative pressure 220 sq.ft. MERV tested cartridge filtration with hopper dust storage and semi-automatic vibrator cleaning cycle found on the Production Charger Model.

For smaller areas the optional blower silencer can be added to reduce the noise level to below OSHA standards.

This is Top of the Line machine design and not just another blasting cabinet.

Read more

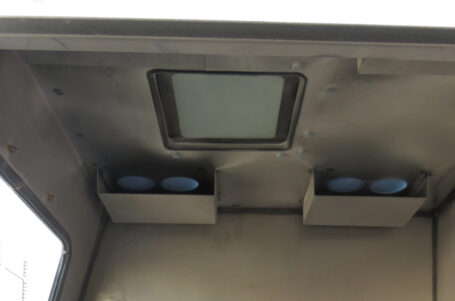

  • 13” x 15” Safety View Window
  • Low Static Window Protector
  • Window Sweep to help keep the window clear
  • Advanced LED Cabinet Lighting
  • Air Inlet Filters
  • 8” Diameter Work Ports
  • Right Side Access Door
  • Lockable Door Handle
  • Operator Control Panel
  • Expanded Metal  Work Grates
  • Boron Carbide Nozzle
  • Blow-Off Gun
  • 220 Sq.Ft. Cartridge Dust Collector
  • Easy Clean Pneumatic Vibrator Cleaning Cycle
  • MERV Test Cartridge Filter
  • Dust Collector Service Access Door
  • Hopper Dust Storage
  • 700 CFM Blower optional  Silencer Available
  • Expanded Metal  Work Grates
  • Boron Carbide Nozzle
  • Blow-Off Gun
  • 220 Sq.Ft. Cartridge Dust Collector
  • 700 CFM Blower, Optional  Silencer Available
  • Easy Clean Pneumatic Vibrator Cleaning Cycle
  • MERV Tested Cartridge Filter
  • Dust Collector Service Access Door
  • Hopper Dust Storage

3030

Inside Cabinet

30”x30”x30”H

Overall Cabinet

35”Wx45”Dx84”H

Door

24” x 25”H

Air Usage

12 to 23 CFM

Electrical

120 Volt-60Hz

Dust Collector

220 Sq.Ft. Cartridge

Shipping Weight

650 Lbs.
