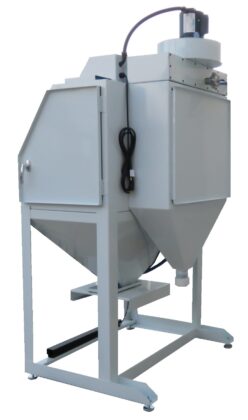

The New Cobra Stage I Direct Pressure Soda Blasting Cabinet

click on image for larger view

The New Cobra Stage I Direct Pressure Soda Blasting Cabinet

The Dust Collector on the Cobra Stage I has two cleaning circuits; pneumatic vibrator cleaning cycle and the air pulse cleaning cycle. These can be operated together or independently.The All-New EasyClean Cartridge Filters are special material making cleaning fast and simple.

The machine includes a New Operator Dash Panel allowing easy operator control changes.

The Cobra Stage I comes with two nozzles, the 0.147 and the longer 4-1/2 inch 90-degree for reaching down into hard to clean areas, this is a direct pressure machine that allows blind hole and cross drill cleaning.

Read more
  • Up to one (1) hour daily machine duty cycle suggested
  • Value for Dollar
  • 13” x 24” ClearView™
  • Anti-Static Window Protector Glass
  • 500 CFM Blower
  • Easy Clean Filters, 90 Sq.Ft.
  • Vibrator Cleaning Cycle
  • Air Pulse Cleaning Cycle
  • Top Window Sweep
  • 8” Work Ports
Low Air Usage

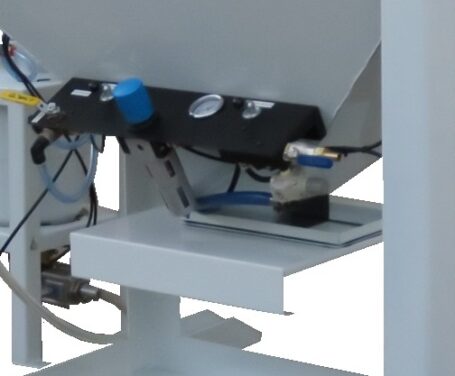

  • Easy to use Operator Control Panel
  • Air Regulator-Gauge-Water Trap
  • Free Standing 0.8 C.F ASME Code Soda Delivery with  GhostFlow™ Soda Controls
  • Manual Soda Pot Loading
  • Main Air Inlet Shut-Off Valve
  • Fine Tuning Soda Flow Choke Valve
  • Stainless Steel Soda Metering Valve
  • Vibrator Assist Soda Feed with On-Off Controls
  • Easy to use Full Front Treadle Blast Pedal
Low Soda Flow
  • Right and Left Side Access Doors
  • Operator Work Grates
  • Advanced LED Lighting
  • Used Soda Dropout Hopper
  • Tool-less Window Replacement
  • 10-12 cfm GhostFlow™ Soda Delivery
  • Patented Separator Reclaimer
  • Down Draft Airflow
  • Blow-Off Gun

Inside Cabinet

42”Wx24”Dx26”H

Overall Cabinet

47”Wx37”Dx63”H

Door(2)

20” x 21-3/4”H

Soda Delivery

0.8 Cu.Ft.

Air Usage

10-12 CFM

Electrical

120 Volt-60Hz

Dust Collector

Easy Clean Cartridge

Dust Collector Blower

500 CFM

Shipping Weight

400 lbs.
