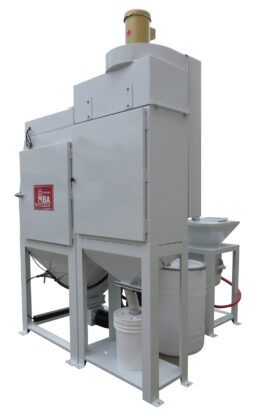

Blizzard Stage III Soda Direct Pressure Blasting Cabinet

click on image for larger view

Blizzard Stage III Soda Direct Pressure Blasting Cabinet

Four (4) Standard Cabinet Sizes

Media Blast offers three soda blast models ranked in different stages for different daily operation. This is also known as the machine duty cycle. The Blizzard Stage III Soda model is available in four (4) different cabinet sizes.  The Blizzard has the most advanced dust collector system and the most advance pre-dust-collector used soda collection system available today.

Read more
  • 4-5 Hour Daily Duty Cycle
  • 13” x 24” ClearView™ Window Sweep with Anti-Static Window Protector Glass
  • Advanced  LED Lighting
  • 1100 CFM Blower with Silencer
  • High Voltage Singe Power Source
  • Easy Clean Filter Cartridges MERV Tested and Certified
  • Automatic Timed Reverse Pulse Cleaning Dust Collector Cycle
  • Manual Pulse Over-Ride Controls
  • Pneumatic Vibrator Cleaning Cycle
  • Magnahelic Filter Monitor Gauge
  • 10” Work Ports
  • Pneumatic Conveyor Used Soda Collector, 95% Efficient
  • 20 gallon used soda container
Low Air Usage
  • GhostFlow™ Soda Generator
  • Easy to use Operator Control Panel
  • New 1.0 Cubic Foot Soda Delivery included with every Blizzard
  • Pressure Generator ASME Coded
  • Pressure Pot Access Port
  • Fine Tuning Choke Valve
  • Adjustable Soda Metering Valve
  • Air Regulator-Gauge-Water Trap
  • Vibrator Assist Feed Circuit with Air Control Switch
  • Soda Loading Hopper, negative pressure
  • Constant Pressure Pot Blast Control
  • Manually Controlled Pot Loading Circuit
Low Soda Flow
  • Large side access door (s) with Inner Panel
  • Safety Door Interlock (s)
  • Operator Bar Work Grates with Perforated Overlay
  • Advanced LED Lighting
  • Cyclone Separator Used Soda Collector, 95% Used Soda Collection before the dust collector
  • Tool-less Window Replacement, 13” x 24”
  • GhostFlow™ Soda Delivery
  • 0.147, 3/16” Boron and 3/16” x 6”  90-degree Nozzles, Included
  • Full Front Easy Use Treadle Pedal
  • Down Draft Cabinet Airflow
  • 35 to 150 pounds Soda Usage Daily
  • Includes 1.0 c.f. soda generator
  • Oversized Dual Cartridge Dust Collector, 440 square feet filter

Inside Cabinet

36”x36”x36”

Overall Cabinet

54”Wx70”Dx84”H

Door

27” x 28”H

Soda Delivery

1.0 Cu.Ft.

Air Usage

9-22 CFM

Electrical

230-460 Volt-60Hz

Dust Collector

Easy Clean Cartridges

Shipping Weight

1150 Lbs.

4836

Inside Cabinet

48”Wx36”Dx36”H

Overall Cabinet

66”Wx70”Dx90”H

Door

27”x28”H

Soda Delivery

1.0 Cu.Ft.

Air Usage

9-22 CFM

Electrical

230-460 Volt-60Hz

Dust Collector

Easy Clean Cartridges

Shipping Weight

1250 Lbs.

4848

Inside Cabinet

48”x48”x35”H

Overall Cabinet

66”Wx80”Dx90”H

Door

39”x28”H

Soda Delivery

1.0 Cu.Ft.

Air Usage

9-22 CFM

Electrical

230-460 Volt-60Hz

Dust Collector

Easy Clean Cartridges

Shipping Weight

1300 Lbs.

6060

Inside Cabinet

60”x60”x48”H

Overall Cabinet

78W”x90D”x102”H

Door

2 each 51” x 40H

1.0 Cu.Ft. Standard

1.0 Cu.Ft. Standard

Air Usage

10-30 CFM

Electrical

230-460 Volt-60Hz

Dust Collector

Easy Clean Cartridges 220 Sq.Ft.

Shipping Weight

1850 Lbs.
