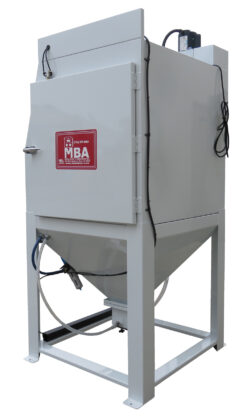

Dominator Siphon

click on image for larger view

Dominator Siphon

High Daily Machine Duty Cycle using almost any abrasive type and the widest abrasive pattern and continuous operation result in flexibility and fast part processing. The Dominator also includes the space saving side mounted dust collector.

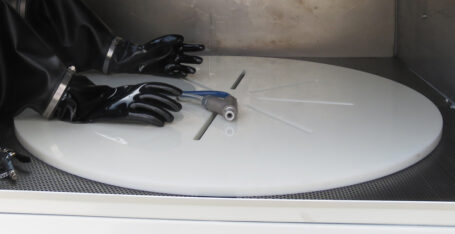

  • 13” x 24” ClearView™ Window Sweep
  • Low Static Window Protector
  • Advanced LED Cabinet Lighting
  • 10” Diameter Work Ports
  • Operator Control Panel
  • Space Saving Side Mounted Dust Collector
  • Filter Cycle Cleaning Gauge
  • Vertical Abrasive Mixing Valve Sump with Drain
  • 700 CFM Blower with Blower Silencer
  • 220 Cartridge Filter
  • Easy Cleaning Cartridge Vibrator Cleaning Cycle
  • Down-Draft Air Inlet Filters
  • Patented Abrasive Separator Reclaimer
  • Dust Storage Hopper
  • Large Right Side Access Door
  • Double Pan Door Construction
  • Refrigerator Door Latch, lockable
  • Safety Door Interlock Switch
  • Bolt-In Hopper Scalper Screen
  • Air Regulator-Gauge-Water Trap
  • Tungsten Carbide Nozzle
  • Long Wear Abrasive Hose
  • Blow-Off Gun
  • Expanded Metal Work Grates
  • Machine Lag Pads

3636

Inside Cabinet

36”x36”x36”

Overall Cabinet

54”Wx42”Dx90”H

Door

30” x 28”H

Air Usage

25 to 90 CFM

Electrical

120 Volt-60Hz

Dust Collector

220 Sq.Ft. Cartridge

Shipping Weight

700 Lbs.

4836

Inside Cabinet

48”Wx36”Dx36”H

Overall Cabinet

66”Wx42”Dx90”H

Door

30”x 28”H

Air Usage

25 to 90 CFM

Electrical

120 Volt-60Hz

Dust Collector

220 Sq.Ft. Cartridge

Shipping Weight

800 Lbs.

4848

Inside Cabinet

48”x48”x36”H

Overall Cabinet

66”Wx54”Dx90”H

Door

39”x28”H

Air Usage

25 to 90 CFM

Electrical

120 Volt-60Hz

Dust Collector

220 Sq.Ft. Cartridge

Shipping Weight

960 Lbs.
