N-200 Stage II Direct Pressure Soda Blasting Cabinet

click on image for larger view

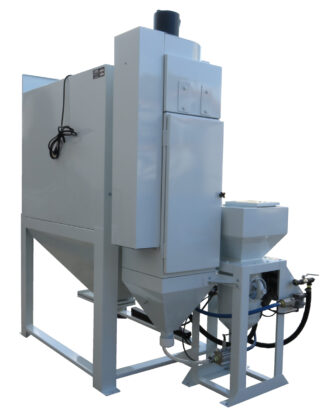

N-200 Stage II Direct Pressure Soda Blasting Cabinet

N-200 Stage II Soda Blast

Three (3) Standard Cabinet Sizes

All New for 2018

Media Blast offers three soda blast models ranked in different stages for different daily operation.  This is also known as the machine duty cycle. The N-200 Stage II Soda model is also available in three cabinet sizes and includes the ALL-NEW ASME Coded 0.8 cubic foot soda delivery system with easy to use control panel and GhostFlow™ Soda Delivery System.

Read more
  • 2 to 3 Hour Daily Duty Cycle
  • Value for Dollar is visible
  • 13” x 24” ClearView™ Window Sweep
  • Anti-Static Window Protector
  • ClearView™ Window Sweep
  • Large Side Access Door with Inner Door Panel
  • Safety Door Interlock Switch
  • Filter Cycle Cleaning Gauge
  • 10” Work Ports
  •  Full Front Easy Use Treadle Pedal
Low Air Usage
  • Easy to use Operator Control Panel

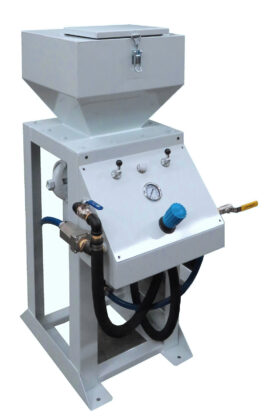

  • 0.8 Cubic Foot Soda Delivery System with ASME Coded Pressure Pot
  • Pressure Pot Access Port
  • Main Air Inlet Shut-Off Valve
  • Line Pressure By-Pass Control
  • Fine Tuning Choke Valve
  • Stainless Steel Soda Metering Valve
  • Air Regulator-Gauge-Water Trap
  • On-Off Air Control Switches
  • Pneumatic Vibrator Soda Feed
  • Soda Loading Hopper, negative pressure
Low Soda Flow
  • 700 CFM Blower with Silencer
  • MERV Tested EasyClean Filter Cartridge
  • Vibrator Dust Collector Cleaning Cycle included
  • Reverse Pulse Dust Collector Cleaning Cycle included
  • Operator Work Grates, HD Bar type with Perforated Grate Overlay
  • Advanced LED Lighting
  • Used Soda Dropout Hopper with 6 Inch Slide-gate Dropout
  • 9 or 22 cfm Soda Nozzle for GhostFlow™  Soda Delivery
  • Down Draft Cabinet Airflow
  • 35 to 100 pounds Daily Soda Usage

3636

Inside Cabinet

36”x36”x36”

Overall Cabinet

54”Wx42”Dx90”H

Door

27” x 28”H

Soda Delivery

0.8 Cu.Ft.

Air Usage

9-22 CFM

Electrical

120 Volt-60Hz

Dust Collector

Easy Clean Cartridge

Shipping Weight

875 Lbs.

4836

Inside Cabinet

48”Wx36”Dx36”H

Overall Cabinet

66”Wx42”Dx90”H

Door

27”x28”H

Soda Delivery

0.8 Cu.Ft.

Air Usage

9-22 CFM

Electrical

120 Volt-60Hz

Dust Collector

Easy Clean Cartridge

Shipping Weight

950 Lbs.

4848

Inside Cabinet

48”x48”x35”H

Overall Cabinet

66”Wx54”Dx90”H

Door

39”x28”H

Soda Delivery

0.8 Cu.Ft.

Air Usage

9-22 CFM

Electrical

120 Volt-60Hz

Dust Collector

Easy Clean Cartridge

Shipping Weight

1100 Lbs.
