PRO G/S (Grit Shot) Pressure

click on image for larger view

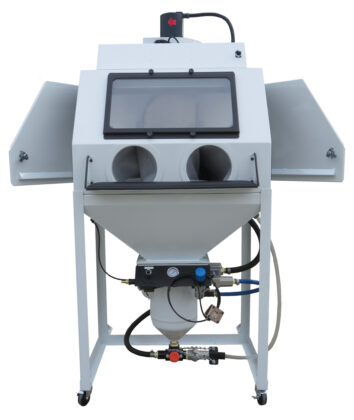

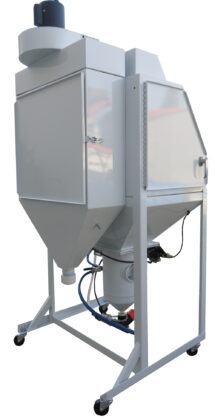

PRO G/S (Grit Shot) Pressure

ABS Products pressure machines are available in many sizes for many different applications. The NEW Pro G/S model is a more compact cabinet size that has specific applications for blending repaired parts, heads and other repaired items. Matching Factory Finishes, Camouflaging Repairs and Blending 3-D parts is also a Pro G/S application. This New Pro G/S design fits those small spaces, perfect for R&D (research and development) and smaller shops when direct pressure is needed.

  • 1 to 1-1/2 hours / day
  • Value for Dollar
  • 13” x 24” ClearView™ Window
  • Anti-Static Window Protector Glass
  • Rubber Back Liner
  • Patented Separator Reclaimer
  • Window Sweep
  • 8” Work Ports
  • Padded Armrest
  • Easy to use Operator Control Panel
  • 0.8 Cubic Foot ASME Coded Pressure Pot with access port
  • Tool-less Window Replacement
  • 25 CFM Nozzle
  • LED Lighting, 30 Watts
  • Operator Work Grates
  • Automatic Pot Blow-Down Controls for quick pot loading
  • Fine Tuning Choke Valve flow control
  • HD Shot Mixing Valve
  • Air Regulator-Gauge-Water Trap
  • Foot Operated Blast
  • Right and Left Side Access Doors
  • 500 CFM Blower
  • Dust Collector Service Door
  • MERV tested filter cartridges, 90 sq.ft.
  • Vibrator Cleaning Cycle, dust collector
  • Machine Casters
  • 120 Volt Operation

Pro G/S Specifications

Inside Cabinet

36”Wx24”Dx24”H

Overall Cabinet

38”Wx35”Dx81”H

Door

19” x 19”H

Pressure Pot ASME

0.8 Cu.Ft.

Air Usage

Up to 25 cfm

Electrical

120 Volt-60Hz

Dust Collector

Cartridge 90 Sq.Ft. with 500 CFM Blower

Cleaning Cycle

Pneumatic Vibrator

Shipping Weight

470 lbs.
